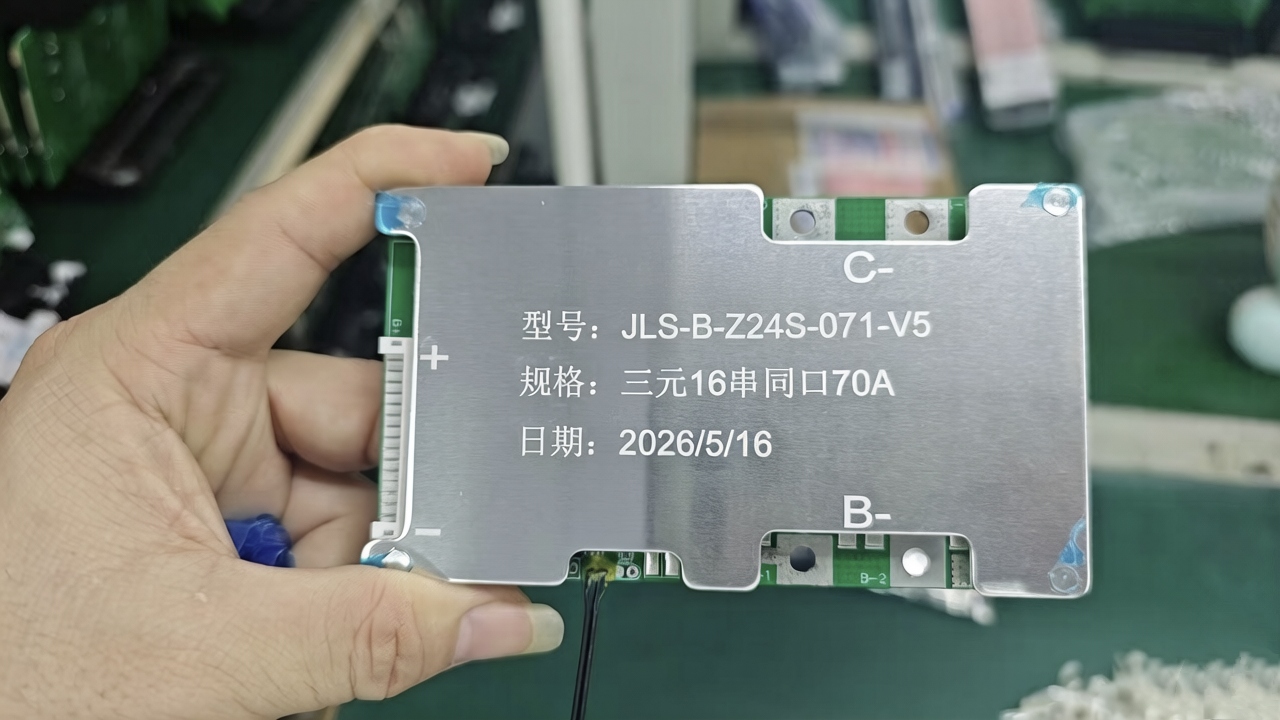

1. Product Overview

The JLS-B-Z24S-071-V5 is a high-reliability Battery Management System (BMS) engineered by Shenzhen Jinlisheng Electronics for next-generation sodium-ion battery packs. While natively designed for 23-series (23S) configurations, the firmware architecture supports flexible adaptation for 6S to 16S applications via parameter configuration, making it an ideal solution for energy storage systems (ESS), low-speed EVs, and industrial backup power.

Built on the Sinowealth SH3676xx platform, this BMS ensures precise cell voltage monitoring and robust safety management, fully compliant with RoHS standards.

2. Key Features & Advantages

Features Category Technical Details Technical Details Business Value

Sodium-Ion Optimization Tailored voltage thresholds for Na-ion chemistry (OVP: 3.95V). Maximizes the cycle life and safety advantages of sodium batteries.

Flexible Compatibility Native 23S design with software support for 6S-16S. Reduces SKU complexity for distributors; one board fits multiple projects.

Robust Power Stage Uses Depp/Longxia MOSFETs (DP043N14BGN/LR036N12S2). Low Rds(on) ≤ 30mΩ minimizes heat generation during 50A continuous discharge.

Precision Protection Multi-level OCP (150A/300A) & μs-level short circuit protection. Prevents thermal runaway and protects downstream equipment.

Communication Ready Supports UART/RS485 (via reserved ports). Enables integration with IoT monitoring systems and inverters.
3. Technical Specifications
Parameter Specification Notes

Model JLS-B-Z24S-071-V5

Battery Chemistry Sodium-ion (Na-ion) Also compatible with LiFePO4/Li-ion via config

Cell Configuration Native: 23S / Supported: 6S - 16S Requires PC software configuration

Nominal Voltage 82.8V (23S)

Charge Voltage 90.85V ±1%

Continuous Current 50A (Charge/Discharge) Max @ 25°C Ambient

Peak Current 150A (2s), 300A (0.5s) Over-current protection levels

Balancing Passive Balancing 50mA ±30mA, Start: 3.8V

Protection Functions OVP, UVP, OCP, SCP, OTP, Cell Imbalance Full AFE coverage

Communication UART / RS485 (Optional) For external monitoring

Static Current ≤ 150µA Extends standby time

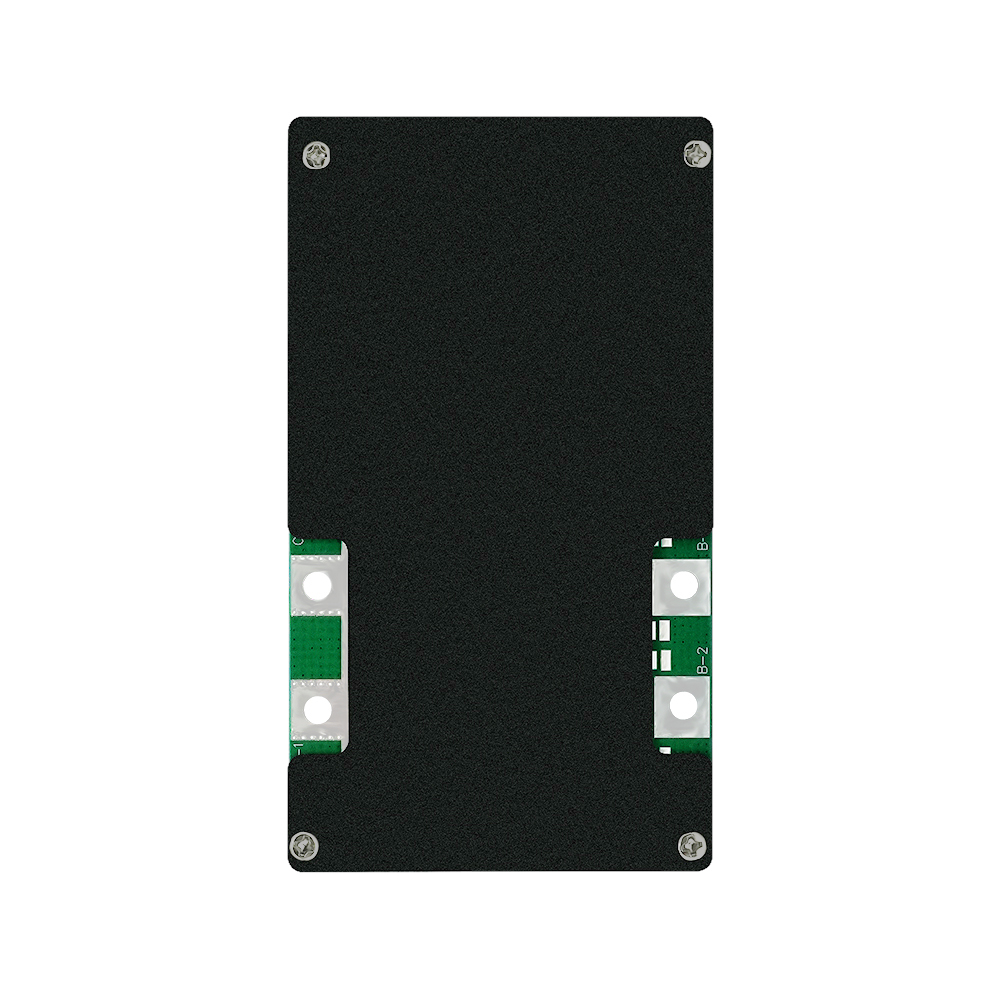

PCB Dimension 124 × 70 × <15 mm Standard form factor

4. Protection Parameters

• Over-Voltage Protection (OVP): 3.95V ±50mV (Delay: 1000ms)

• Under-Voltage Protection (UVP): 1.5V ±50mV (Delay: 1000ms)

• Charge Over-Current: 50A ±10A (Delay: 10s)

• Discharge Over-Current: L1: 150A (2s), L2: 300A (500ms)

• Short Circuit Protection: < 500µs response time

• Temperature Range: -20°C to +60°C (Operation)

5. Hardware & BOM

To ensure supply chain stability, we use industrial-grade components:

• Protection IC: Sinowealth SH3676016B / SH3676010B

• MOSFETs: Depp (DP043N14BGN) / Longxia (LR036N12S2)

• Sense Resistors: 0.003R x 6 (Foshan Haoyun / TA-I)

Quality Note: To ensure optimal performance and supply continuity, component brands may be substituted between batches (e.g., MOSFETs) provided that electrical specifications meet or exceed the original design.

6. Typical Applications

• Home Energy Storage Systems (ESS)

• Telecom Base Station Backup

• Electric Two-Wheelers (E-bikes/Scooters)

• Solar Energy Storage

• Industrial Cleaning Equipment
